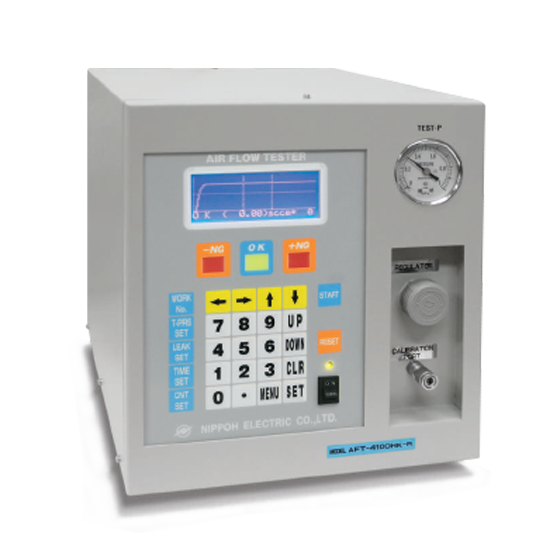

AFT-4100HK-R(E)

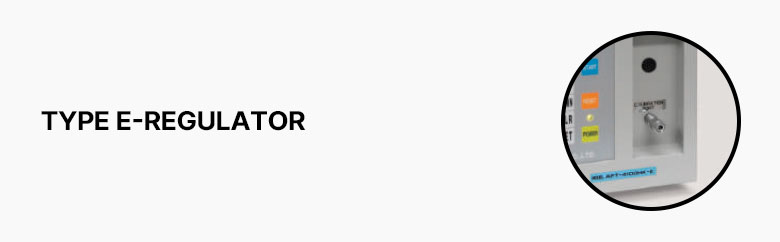

In the previous version, the operation set the test pressure of the regulator, but the AFT-4100 type automatically sets the test pressure with one data setting(Type E-AUTO REGULATOR).
Suitable for multi-product, mass production lines.
Key Feature
2. Separate judgment available for leakage extend
(large, middle, small judgment and output by leakage)
3. Pressure setting available by Work(32CH)
4. Briefly setting Air charge curve
5. Quick pressure charge function(E-type)
6. Compact size
7. Pressure unit conversion function
Pattern
digital display pattern
Normal pressure graph pattern
Rapid pressure graph display pattern(E)
Specification
Leakage Display : Pa, mmH2O, sccm / Pressure Display : kPa, kg/cm2, bar, psi
1. Method : MASTER, WORK comparison method
2. Function : WORK management method (automatic mode)
· Quick pressure and Test pressure are Digital setting.
· Test pressure is quick charge rapid pressure (Option)
· It is possible to set SLOW UP control of test pressure randomly (Option)
· It is possible to display internal state of test pressure with a graph
3. Display : LCD attached with backlight
4. Test pressure
· L-TYPE 1 kPa~50 kPa /M-TYPE 5 kPa 200 kPa
· H-TYPE 5 kPa~800 kPa /V-TYPE-5 kPa~-101 kPa
5. Detection of differential pressure : 0 ~ ±2000Pa(0 ~ ±199.9mmH2O)
6. Time Setting
· Control 0~999.9 sec, Pressure 0~999.9 sec
· Balance 0~999.9 sec, Detection 0~999.9 sec
7. Measurement Error : Test pressure, Differential pressure 0.25% FS(20℃)
8. Control panel : 27 Key (0~9 + Function Key)
9. Work Number : 0∼31 CH pattern function
10. Output signal : OK, NG, Control signal(a-contact), 1A
11. Power : AC100~240V, 50/60Hz, Max, 150VA
12. Weight: about 15 kg
