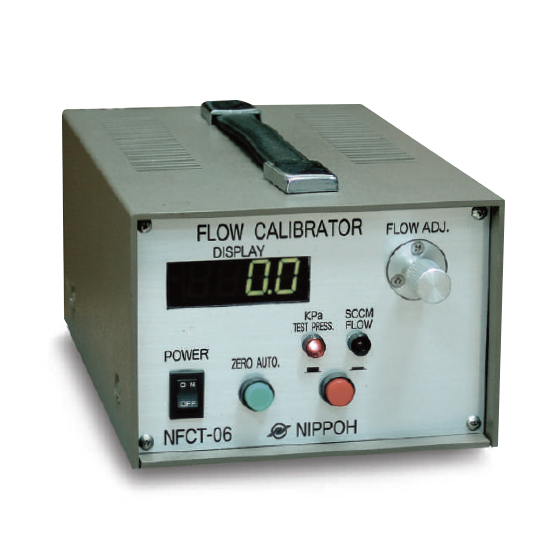

NFCT-06
FLOW CALIBRATOR
This calibrator can be applied in the field of leak tester and various engineering.
It is possible to check pressure and fine differential pressure with this calibrator.
It is possible to check pressure and fine differential pressure with this calibrator.
Key Feature
1. Test pressure port : Connect to WORK port of PT 1/8 LEAK TESTER
2. Fine flow needle valve : 0 ~ 5mm stroke
3. ZERO : Press AUTO ZERO for about one second if the point of Zero is dislocated.
4. Air tube caliber : 6⌀(6mm⌀)
5. Dimension : W160 × H110 × D250
6. Power : AC95 ~ 240V, 50Hz ~ 60Hz
7. Weight : 3.1kg
2. Fine flow needle valve : 0 ~ 5mm stroke
3. ZERO : Press AUTO ZERO for about one second if the point of Zero is dislocated.
4. Air tube caliber : 6⌀(6mm⌀)
5. Dimension : W160 × H110 × D250
6. Power : AC95 ~ 240V, 50Hz ~ 60Hz
7. Weight : 3.1kg
Specification
1. Test pressure(Charging Press.) measurement range : 0 ~ 106kPa
2. Minimum Pressure display value : 0.1kPa
3. Internal pressure for pressure sensor : Maximum 1MPa
4. Flow : 0 ~ ±100sccm
5. Minimum flow display value : 0.01sccm
6. Internal pressure for flow sensor : Maximum 200kPa
